Constructional galvanized ringlock scaffolding
Ringlock scaffolding uses a simple, unique and bolt-free connection technology.
Sliding the wedge head over the rosette and inserting the wedge into the opening immediately secures the component. There is still sufficient play to secure the other end of the ledger.
A hammer blow to the wedge transforms the loose connection into a superbly strong structurally rigid one. The face of the wedge head is now precisely positioned against the standard.
Ringlock Scaffolding Eight A benefits
A Save time during assembly and dismantling thanks to bolt-free connection technology.
A Safe and simple one-man assembly.
A No loose parts.
A Very little material required.
A Maintenance free and always ready for use.
A Low weight of individual parts.
A Tried and proven range of parts.
A Economic and versatile design that convinces.
Ringlock Scaffolding can be customized by drawings,below is our standard typs.
| Product Name | Ringlock Scaffolding System Rosette | ||||
| Brand Name | YS | ||||
| technology | fully automatic circular seam welding | ||||
| Payment | T/T;L/C;and so on | ||||
| Customization | Can be made by drawings | ||||
| Model | Specifications | Texture | Weight/kg | |
| Vertical | YS-LA-250 | Φ60*3.2*250 | Q345B | 2.65 |
| YS-LA-500 | Φ60*3.2*500 | Q345B | 3.75 | |
| YS-LA-1000 | Φ60*3.2*1000 | Q345B | 6.65 | |
| YS-LA-1500 | Φ60*3.2*1500 | Q345B | 9.6 | |
| YS-LA-2000 | Φ60*3.2*2000 | Q345B | 12.5 | |
| YS-LA-2500 | Φ60*3.2*2500 | Q345B | 15.5 | |
| YS-LB-250 | Φ48*3.2*250 | Q345B | 1.89 | |
| YS-LB-500 | Φ48*3.2*500 | Q345B | 2.95 | |
| YS-LB-1000 | Φ48*3.2*1000 | Q345B | 5.3 | |
| YS-LB-1500 | Φ48*3.2*1500 | Q345B | 7.64 | |
| YS-LB-2000 | Φ48*3.2*2000 | Q345B | 9.9 | |
| YS-LB-2500 | Φ48*3.2*2500 | Q345B | 12.3 | |
| Ledger | YS-SG-300 | Φ48*2.5*240 | Q235B | 1.4 |
| YS-SG-600 | Φ48*2.5*540 | Q235B | 2.3 | |
| YS-SG-900 | Φ48*2.5*840 | Q235B | 3.2 | |
| YS-SG-1200 | Φ48*2.5*1140 | Q235B | 4.1 | |
| YS-SG-1500 | Φ48*2.5*1440 | Q235B | 5 | |
| YS-SG-1800 | Φ48*2.5*1740 | Q235B | 5.9 | |
| YS-SG-2100 | Φ48*2.5*2040 | Q235B | 6.8 | |
| YS-SG-2400 | Φ48*2.5*2340 | Q235B | 7.7 | |
| U-head Jeck | YS-T-550 | Φ48*5.0*550 | Q235B | 4.38 |
| Base Jeck | YS-DT-550 | Φ48*5.0*550 | Q235B | 3.53 |
| Vertical Diagonal Brace | YS-XG-600*1500 | Φ33*2.3*1606 | Q195 | 3.92 |
| YS-XG-900*1500 | Φ33*2.3*1710 | Q195 | 4.1 | |
| YS-XG-1200*1500 | Φ33*2.3*1859 | Q195 | 4.4 | |
| YS-XG-1500*1500 | Φ33*2.3*2042 | Q195 | 4.7 | |
| YS-XG-1800*1500 | Φ33*2.3*2618 | Q195 | 5.7 | |
| YS-XG-2100*1500 | Φ33*2.3*2833 | Q195 | 8.22 | |
| Model | Length | Width | Height | |
| Steel Plank With Hook | YS-TB-240*45*900 | 0.9 | 240 | 45 |
| YS-TB-240*45*1200 | 1.2 | 240 | 45 | |
| YS-TB-240*45*1500 | 1.5 | 240 | 45 | |
| YS-TB-240*45*1800 | 1.8 | 240 | 45 | |
| YS-TB-240*45*2100 | 2 | 240 | 45 |
| Steel Stair | Model | Length | Width | Height | Texture | Surface treatment |
| YS-LT-2.1*1.5*0.8 | 2.1 | 1.5 | 0.8 | Q235B | Hot dip galvanizing | |
| YS-LT-2.1*2.0*0.8 | 2.1 | 2 | 0.8 | Q235B | Hot dip galvanizing |

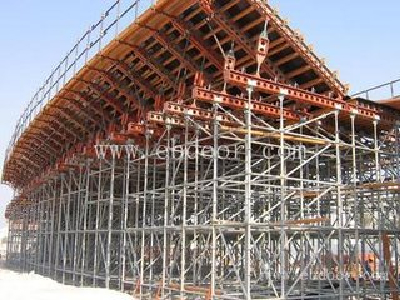

Ringlock Scaffolding Larvish Application
Economic support scaffolding
Scaffolding for formworkers and steelfixers
Façade scaffolding
Birdcage scaffolding
Stairway access
Mobile work scaffolding
Tranches and emergency bridges
Ringlock scaffolding package and transportation
1.bundle with steel strip
2.packaged by waterproof paper
3.packaged by plastic paper
4.bulk in container directly
